NEW HI-PERFORMANCE SMALL BLOCK CHEVY RED SMALL CAP HEI DISTRIBUTOR, RED 45,000 VOLT COIL & 8MM RED SPIRAL CORE SPARK PLUG WIRES ROUTED OVER THE VALVE COVERS THAT ARE MADE IN U. Brand New Small Block Chevy Small Cap HEI Distributor. This distributor is also know as a Ready-To-Run distributor. This distributor requires an external 12 volt coil for electronic ignition and it is included in this listings.

Distributor works on Small Block Chevy 265-283-302-305-307-327-350-400. If you want this distributor & spark plug wires set without a coil, please check out my other listings. I have the distributor in Red, Blue or Black.

The coils also come in 50.000 volt in Red, Blue or Black. If you do not see the color combination you want, just send us a message.

I also have this same electronic distributor with a female (points style) cap. It has the classic "Points style" look, but is completely electronic. The female cap style distributor and wires are both available in Red, Blue or Black and the coil is chrome. PLEASE NOTE: YOU MUST RUN EXTERNAL COIL WITH THIS DISTRIBUTOR and it is included. Coil needs to be a 12 Volt coil for electronic ignition with a primary resistance of 1 ohm or less and have an output of 45,000 volts or more. It will NOT work with a points coil. This Small Cap HEI Ready-To-Run distributor is made for easy installation. Just hook up the two wires and you are "Ready-To-Run"! PLEASE NOTE: For this listing, the Distributor is RED , the Spark Plug Wires are RED and the Coil is RED and is a 45,000 volt oil filled coil.

Small Cap allows for easy fire wall clearance, especially for Pre-1975 that do may not have the room for a large size HEI. OEM appearance (also available with female cap). Unit is fully CNC machined. Fully self-contained distributor with built in Module.

Only requires 12 volt External coil for electronic ignition (Typical points coil will not work). No Ballast Resistor is required. Easy two wire Hookup (wires included). Same as late GM HEI's except you run an external coil instead of In-cap coil.

Eliminates the need for all the extra wiring and ballast resistor. Major improvement in starting and performance over points.

Built-in GM style module (not made by GM). Spark plug gap can run from around 40-45 instead of 35 if you run points.

Same size as the original points distributors and is fully electronic. Far less pollution, as the fuel is burned much better. Faster start ups, especially in cold weather.

Those with carburetors prone to flooding will notice a huge difference, as the spark on electronic ignition is many times stronger than point style ignition. Virtually no maintenance, compared to points. Spark plug life is 3-5 times longer, as well as plug wires. Much better performance, over points, mostly due to the better combustion of unleaded fuel, as this was the primary reason for the development of electronic ignition. Point dwell changes as points wear out, causing your timing to advance dramatically.

This brings your engine much closer to detonation, not to mention hard starting, and poor performance. Over all engine life is much longer with electronic ignition over points.

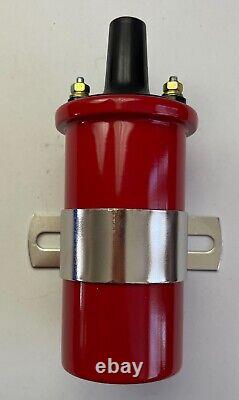

This listing also includes a New RED Round 12 Volt intake mount coil that puts out 45,000 volts. This coil has the classic "old Skool" look and is oil-filled. This is a perfect coil to run with this electronic distributor.

Secondary resistance: 4.5K OHMs. Maximum voltage: 45,000 Volts. Alkyd tower with high dielectric properties is less prone to carbon tracking. 100:1 turns ratio and lower primary resistance produce high voltage output. Metal canister is filled with a premium grade oil for cooling.

This listing also Red PACKARD WIRE 8mm High Performance Spiral Core Spark Plug wires for Small Block Chevy applications. Spark plug wires have 90 degree spark plug boots and 90 degree distributor boots that are already factory assembled. The wires are only 270 Ohms per foot and made in the USA!!

The lower the ohms, the higher the performance! The included set of RED wires will work on SMALL BLOCK CHEVY (up until mid 1980's) with 265-283-302-305-307-327-350-400 engines using the HEI (male tower) distributor that is also included in this listing routing the wires over the valve covers. They have Higher Temp Gray Spark Plug Boots that can withstand 50 degrees more heat than standard spark plug boots. These wires are already factory assembled for these engine sizes so you DO NOT cut and crimp on the distributor ends. This set DOES include ONE, not two, coil wires.

The photo shows 2 different coil wires (for you to reference). Both have one male end and one female end. If a coil wire is not selected, I will send you the coil wire with 90 degree boots on both ends. This item is brand new. PACKARD WIRE 8mm High Performance Spiral Core Spark Plug Wires have a resistance of ONLY 270 Ohms per foot. Next, choose a topic from the list provided.
